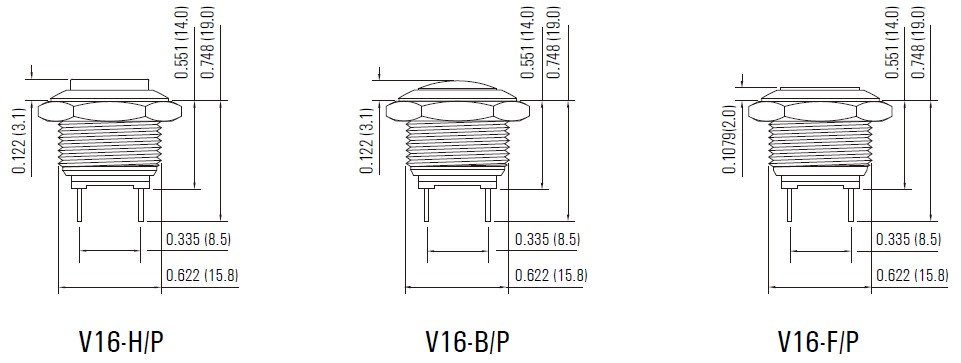

Switch 16mm
| Code of Series | Mounting hole 16mm |
| Front Shape: | B Domed |
| F Flat Round | |
| H High Round | |
| Connect Type: | P Pin Terminal |
| No Screw Terminals | |
| Funtion: | Momentary |
| Contact: | 1 NO |
| 2 NC | |
| Crust material: | S Stainless steel |
| G Gold Plated Brass | |
| N Nikel Plated Brass | |
| A Black Anodized Aluminum //Zinc-Aluminum alloy Black// |

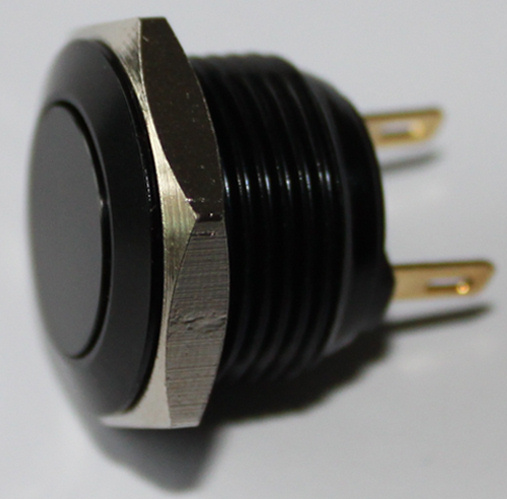

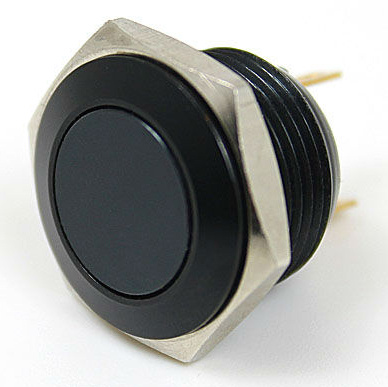

Switch V16-F-P-1-A
Specyfikacja V16-F-P-1-A
| Model Number: | V16-F-P-1-A |
| Front Shape | Flat Round |
| Terminal Type: | Pin Terminals (2x0.5mm) |
| Max. Switch Rating: | 2A/48VDC |
| Contact Resistance: | ≤50mΩ |
| Insulation Resistance: | ≥1000mΩ |
| Dielectric Strengh: | 2000VAC |
| Operation Temp.: | -20°C ~ +55°C |
| Mechanical Life: | 1, 000, 000 cycles |
| Electrical Life: | 200, 000 cycles |
| Contact Material: | Silver Alloy |
| Panel Thickness: | 1~6mm |
| Torque: | 5~14Nm |
| Operation Pressure: | 4N |
| Protection Level: | IP65 |
| Material | |
| Button: | PBT |
| Body: | Black Anodized Aluminum |
| Base: | PBT |
| Actuator: | Black Anodized Aluminum |
| RoHS Available |

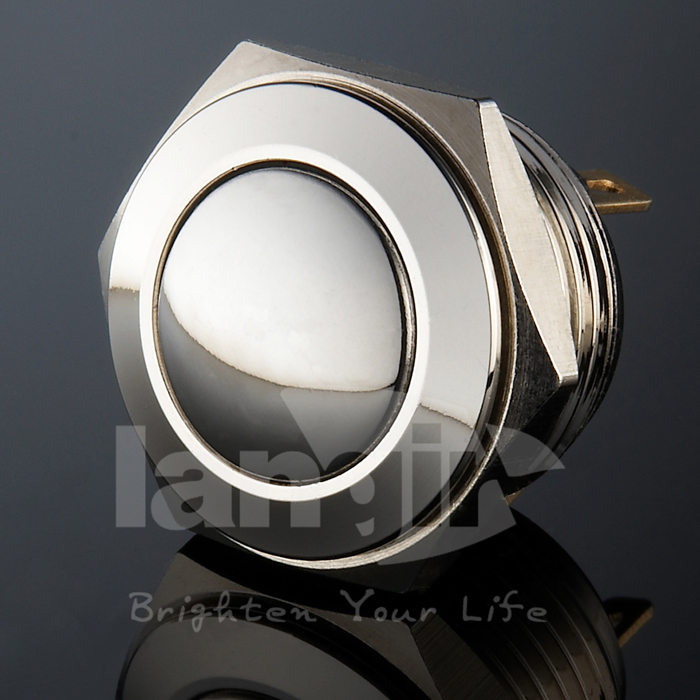

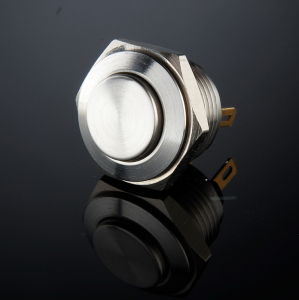

Switch V16-B-P-1-N
Specyfikacja V16-B-P-1-N
| Model Number: | V16-B-P-1-N |
| Front Shape | Domed |
| Terminal Type: | Pin Terminals (2x0.5mm) |
| Max. Switch Rating: | 2A/48VDC |
| Contact Resistance: | ≤50mΩ |
| Insulation Resistance: | ≥1000mΩ |
| Dielectric Strengh: | 2000VAC |
| Operation Temp.: | -20°C ~ +55°C |
| Mechanical Life: | 1, 000, 000 cycles |
| Electrical Life: | 200, 000 cycles |
| Contact Material: | Silver Alloy |
| Panel Thickness: | 1~8mm |
| Torque: | 5~14Nm |
| Operation Pressure: | 4N |
| Protection Level: | IP65 |
| Material | |
| Button: | PBT |
| Body: | Nikel plated brass |
| Base: | PBT |
| Actuator: | Nikel plated brass |
| RoHS Available |

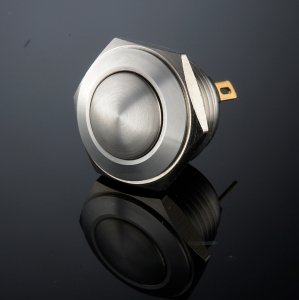

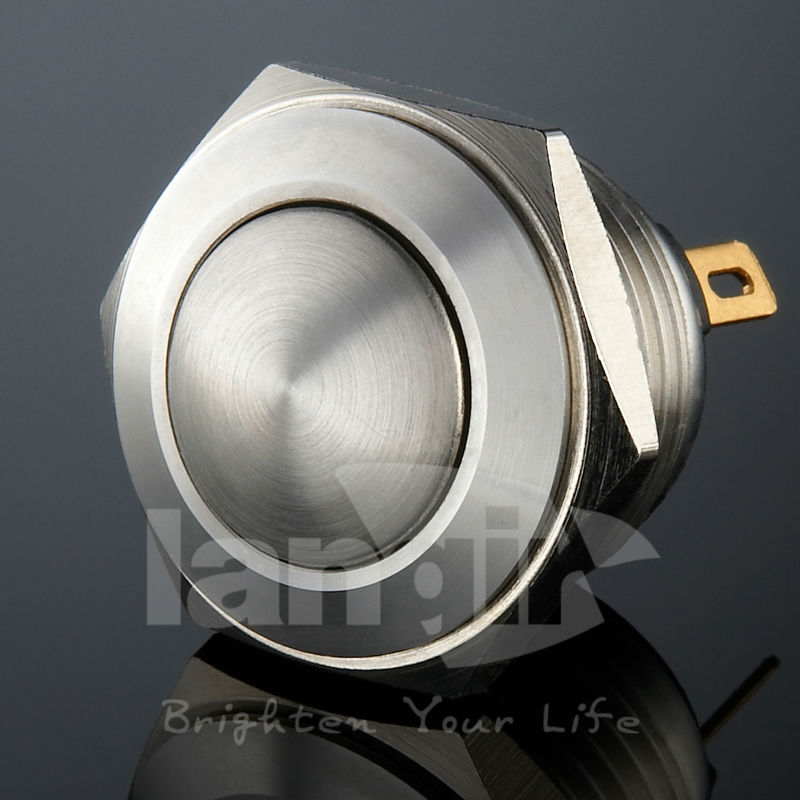

Switch V16-B-P-1-S
Specyfikacja V16-B-P-1-S
| Model Number: | V16-B-P-1-S |
| Front Shape | Domed |
| Terminal Type: | Pin Terminals (2.8x0.5mm) |
| Max. Switch Rating: | 2A/48VDC |
| Contact Resistance: | ≤50mΩ |
| Insulation Resistance: | ≥1000mΩ |
| Dielectric Strengh: | 2000VAC |
| Operation Temp.: | -20°C ~ +55°C |
| Mechanical Life: | 1, 000, 000 cycles |
| Electrical Life: | 200, 000 cycles |
| Contact Material: | Silver Alloy |
| Panel Thickness: | 1~6mm |
| Torque: | 5~14Nm |
| Operation Pressure: | 4N |
| Protection Level: | IP65 |
| Material | |
| Button: | PBT |
| Body: | Stainless Steel |
| Base: | PBT |
| Actuator: | Stainless Steel |
| RoHS Available |
